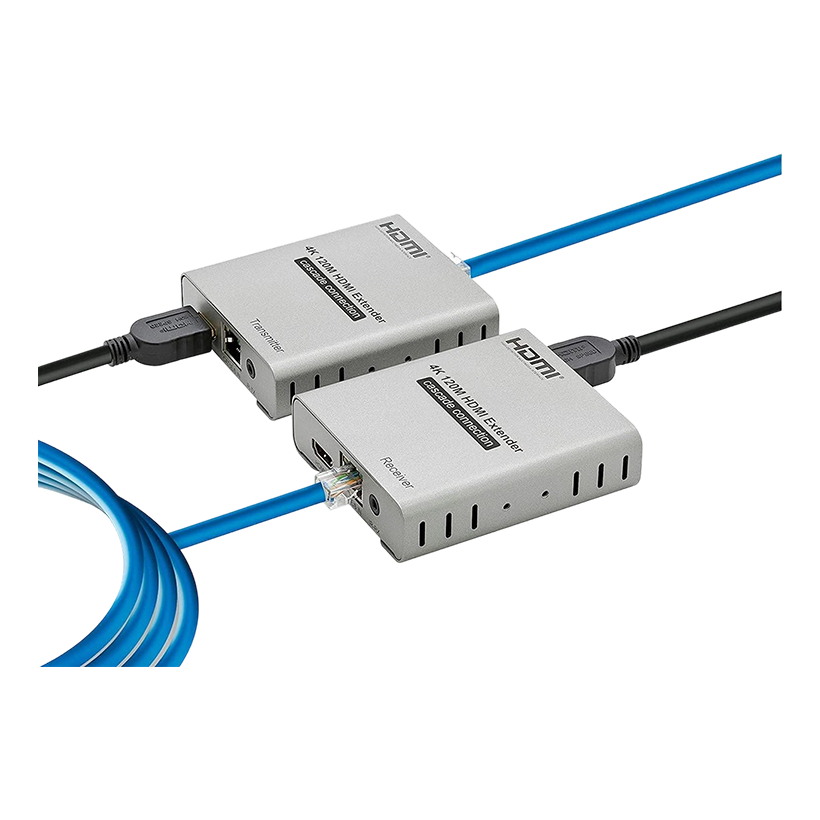

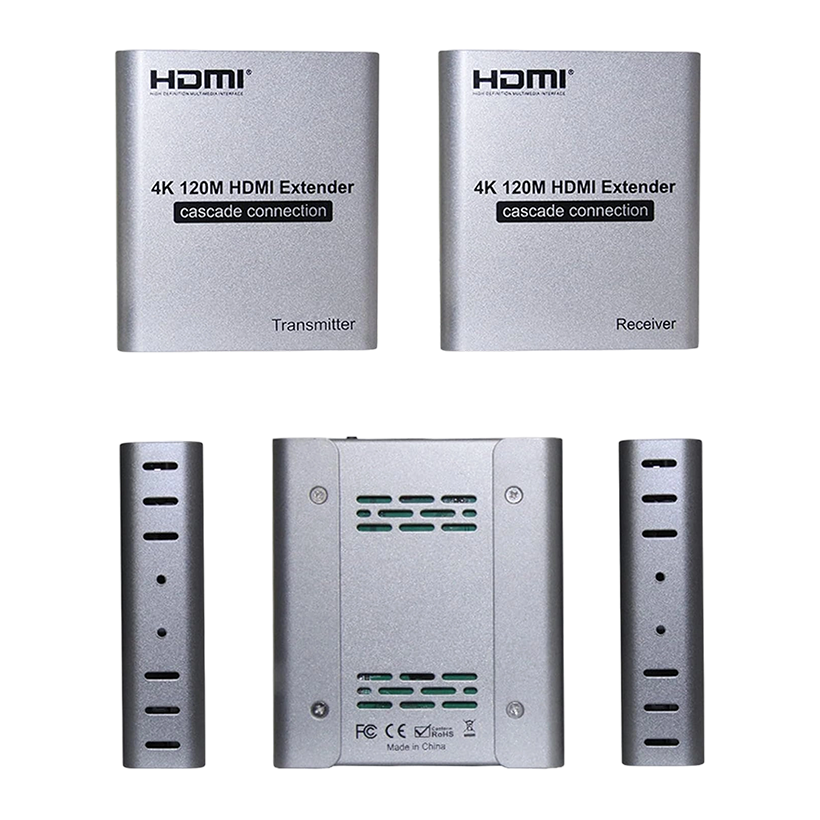

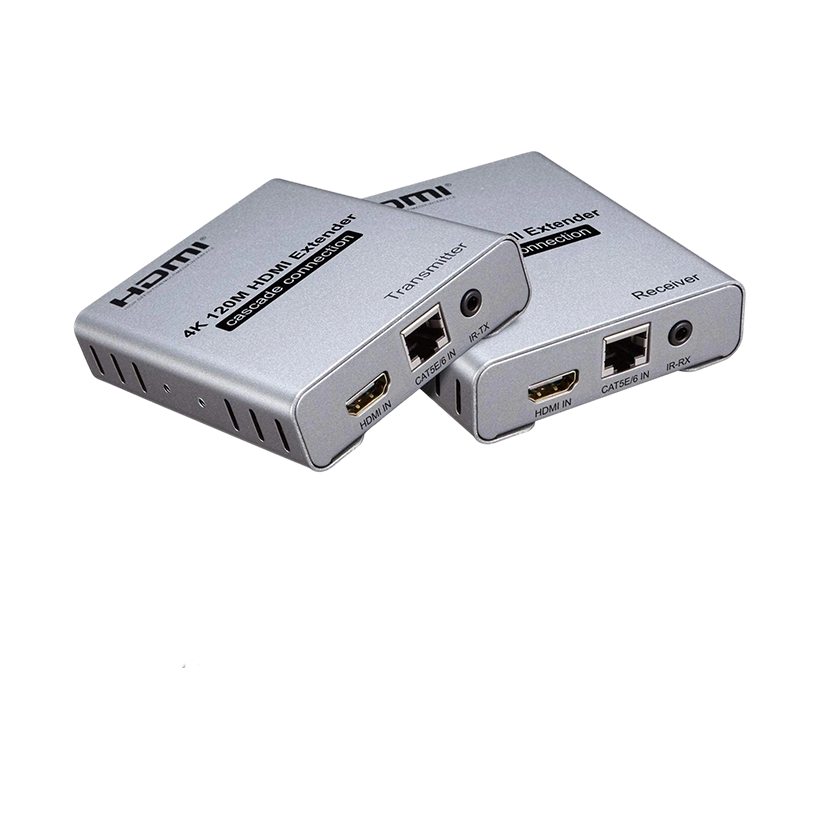

4K HDMI Extender with Cascade Connection
- Type: 4K HDMI Extender
- Function: Extends a single HDMI video source to multiple displays over long distances using CAT5e/CAT6 cable
- Transmission Distance: Up to 120 meters per connection segment
- Connection Method: Main Transmitter (TX) connected to multiple Receiver (RX) units through direct connection, cascade setup, or network switch
Ideal for digital signage, monitoring centers, conference rooms, classrooms, and commercial AV installations.
Key Features
Cascade Connection Support
- Supports cascading multiple receiver units for multi-display distribution
- Typically supports up to 8–12 receiver units depending on the model
- Can operate through direct daisy-chain connection or via network switch/router
- Suitable for scalable video distribution systems
Long-Distance HDMI Transmission
- Extends HDMI signals up to 120 meters over a single CAT5e/CAT6 cable
- Eliminates standard HDMI cable distance limitations
- Stable and reliable transmission using cost-effective Ethernet cabling
4K Ultra HD Resolution
- Supports 4K × 2K resolution at 30Hz (3840 × 2160)
- Compatible with HDMI 1.4 specification
- Delivers clear and high-quality video output
Plug & Play Operation
- No software installation required
- Easy hardware-based setup
- Simple and fast installation for professional and home applications

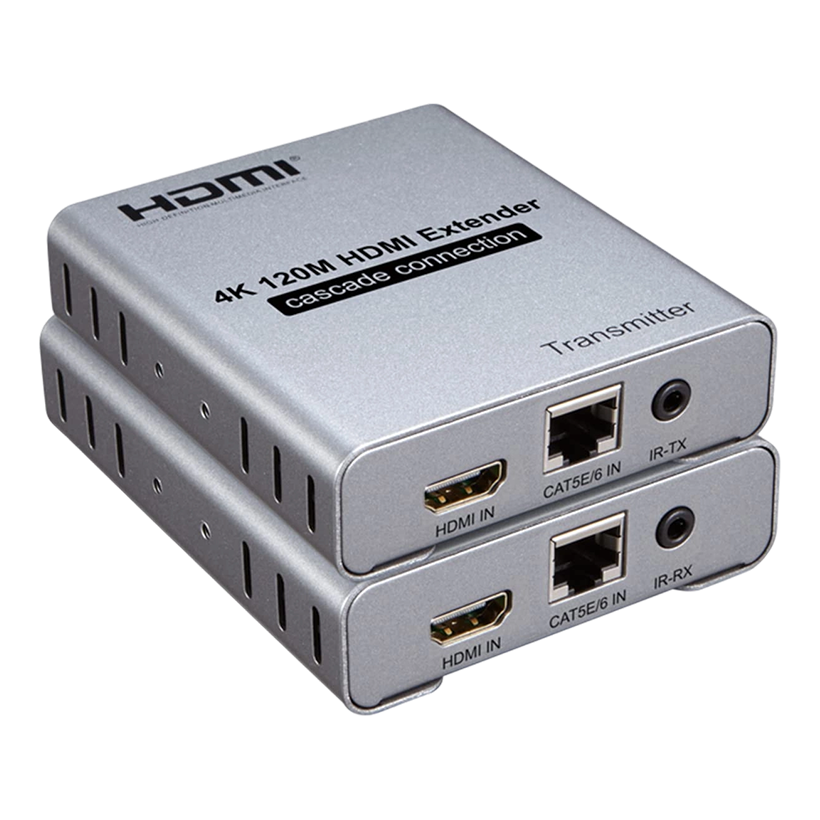

IR Remote Control Pass-Through
- Includes IR TX/RX support
- Allows remote control of the source device from the display location
Local HDMI Loop-Out
- Additional HDMI output on transmitter for local display monitoring
- Enables simultaneous local and remote video output
Connection Modes
Point-to-Point Connection
- One transmitter connected directly to one receiver
- Uses a single CAT5e/CAT6 cable
- Maximum distance up to 120 meters
Point-to-Multipoint (Cascade Mode)
- One transmitter connected to multiple receivers
- Supports network switch/router distribution
- Ideal for video walls, digital signage, and multi-screen environments
- Recommended to use dedicated switches with IGMP support for best performance
Specifications
Transmission
- Transmission Media: CAT5e / CAT6 Ethernet Cable
- Maximum Distance: Up to 120M
- Resolution Support: 4K × 2K @ 30Hz
- HDMI Standard: HDMI 1.4
Features
- Cascade connection support
- Point-to-point & point-to-multipoint transmission
- IR remote extension support
- Local HDMI loop-out support
- Plug & Play installation
Applications
- Digital signage systems
- Security monitoring centers
- Conference rooms
- Educational environments
- Retail display systems
- Industrial control rooms
